EVLT2-32A3P5M-W
Type 2 to Type 2 EV Charging Cable 22kW
Effortlessly charge your electric vehicle with our durable and high-performance iEV 22kW Type 2 to Type 2 EV Charging Cable. Its is designed specifically for public charging stations and comes with a 5-meter cable that provides maximum flexibility, making it easy to reach charging points even in tight spaces.
All iEV 22kW Type 2 to Type 2 EV Charging Cable come with a Five-Year Warranty, and our customer support team is based in Australia. To learn more about the product features and specifications, simply scroll down below.
Note: Not suitable for use as an extension lead.
Couldn't load pickup availability
Pickup available at Toowong Office
Usually ready in 24 hoursPairs well with
Type 2 to Type 2 EV Charging Cable 22kW
Fast, Reliable, and Built to Last:
EV Charging Cable Type 2.
The iEV Chargers and Accessories Charging Cable is constructed with high-quality copper wire, ensuring optimal power transfer. Its outer sheath is fire-resistant and rated UL94-0, providing superior protection. The cable is certified by TUV in accordance with IEC62196 and IEC61851 standards, which guarantees reliable performance.
It features insulation between wires rated up to 2.5kV and is engineered to withstand up to 10,000 cycles of plugging and unplugging. This cable is available in both 7kW single-phase and 22kW three-phase configurations and is supplied with a complimentary carrying bag for enhanced convenience.
Product Specs and Info
Product Specifications
Power:
22kW Three Phase
Max Current / Voltage:
32Amp | Three Phase | 240V
Cable Length:
5 Metres
Rating:
IP55 Rating - Suitable for outdoors
Operation Temperature:
-30°C to 50°C
Materials Used
All of our Electric Vehicle (EV) Type 2 Charging Cables are made from UV and Fire Resistance PC. Our Type 2 EV Charging Cable is rated UL94-0, providing superior protection.
Product Dimensions and Weight
Product Weight:
3Kg
Packaging Dimensions:
350mm (H) x 350mm (W) x 120mm (Depth)
Package Weight:
3.2Kg
Product Warranty
iEV Chargers and Accessories offers an industry-leading 5-Year Replacement-Only Warranty on EV Charging Cables, ensuring peace of mind for our customers.
To learn more, click here.
What's in the Box
22kW Charging Cable
Instructional User Manual

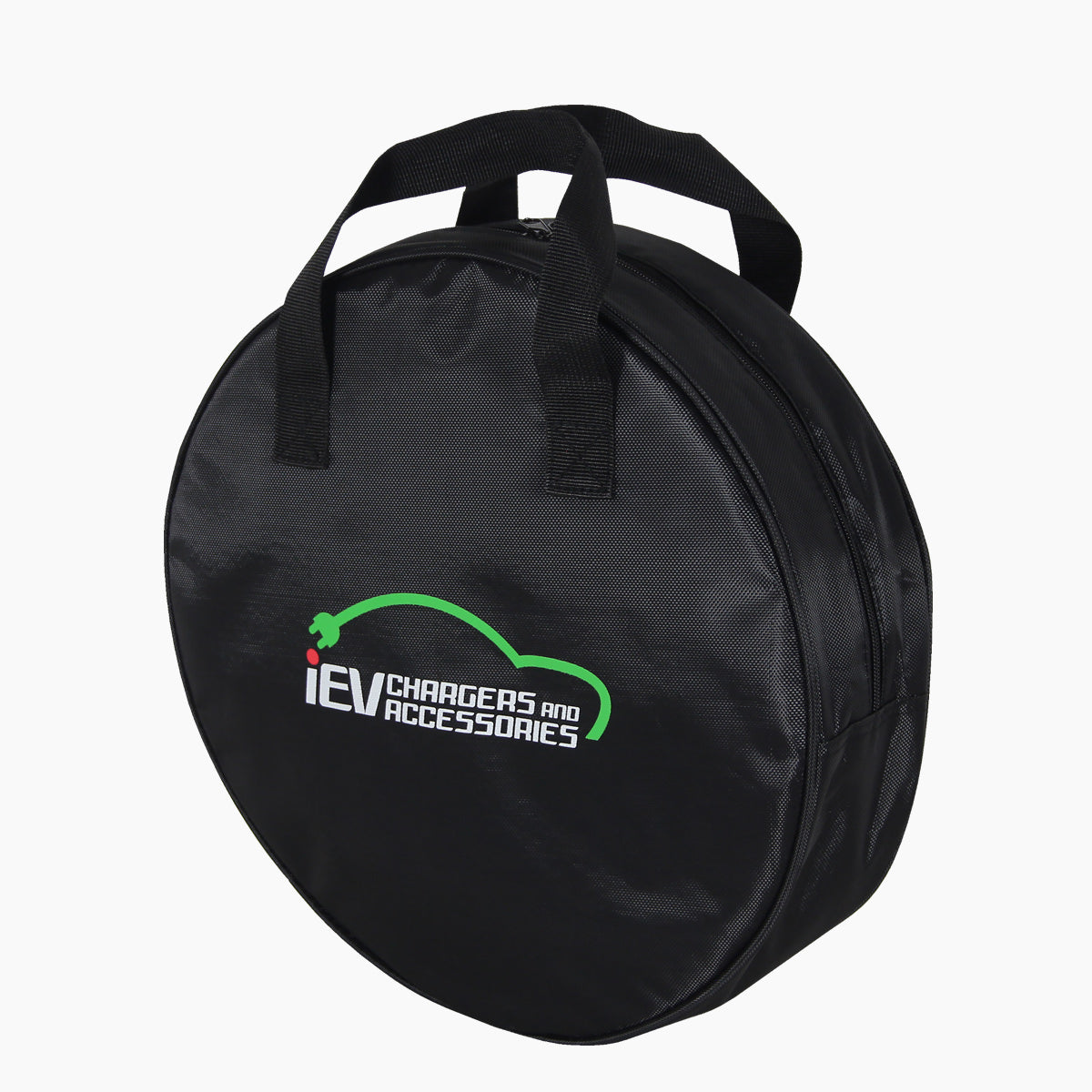

Carry Bag
FAQs
We're delighted to have you here and have provided answers to the most frequently asked questions to assist you.
What is the difference between your 7kW and a 22kW EV Charging Cables?
The primary difference between a 7kW and a 22kW EV Charging Cable is the charging speed.
A 7kW EV charger provides up to 7kW of power per hour, while a 22kW EV charger can deliver up to 22kW per hour. This means that a 22kW EV charger can charge an EV battery significantly faster than a 7kW EV charger, thanks to its higher power output.
However, the actual charging speed also depends on the electric vehicle's maximum charging capacity.
Does the EV Charging Cable come with accessories?
Yes, iEV Chargers and Accessories Type 2 EV Charging Cables comes with a complimentary carry bag, valued at $20, for convenient transportation and storage.
Is the Type 2 EV Charging Cable compliant with Australian standards
Yes, iEV Chargers and Accessories Type 2 EV Charging Cable is certified by TUV in accordance with IEC62196 and IEC61851 standards, which guarantees reliable performance.
Is iEV Chargers and Accessories a local company?
Yes, iEV Chargers and Accessories (ABN: 22 671 747 925) is proudly based in Queensland. We are committed to supporting our local community while offering high-quality charging solutions. All our products are backed by comprehensive public liability insurance, ensuring both reliability and peace of mind.
Can I use your iEV Type 2 EV Charging Cable with my electric vehicle?
Yes, iEV Chargers and Accessories Type 2 EV Charging Cable is compatible with the majority of electric vehicles in the Australian market, as long as the vehicle uses a Type 2 charging interface.
This includes popular models like, Tesla, Build Your Dream (BYD)
MG, and other plug-in hybrid electric vehicles (PHEVs) currently
available.
